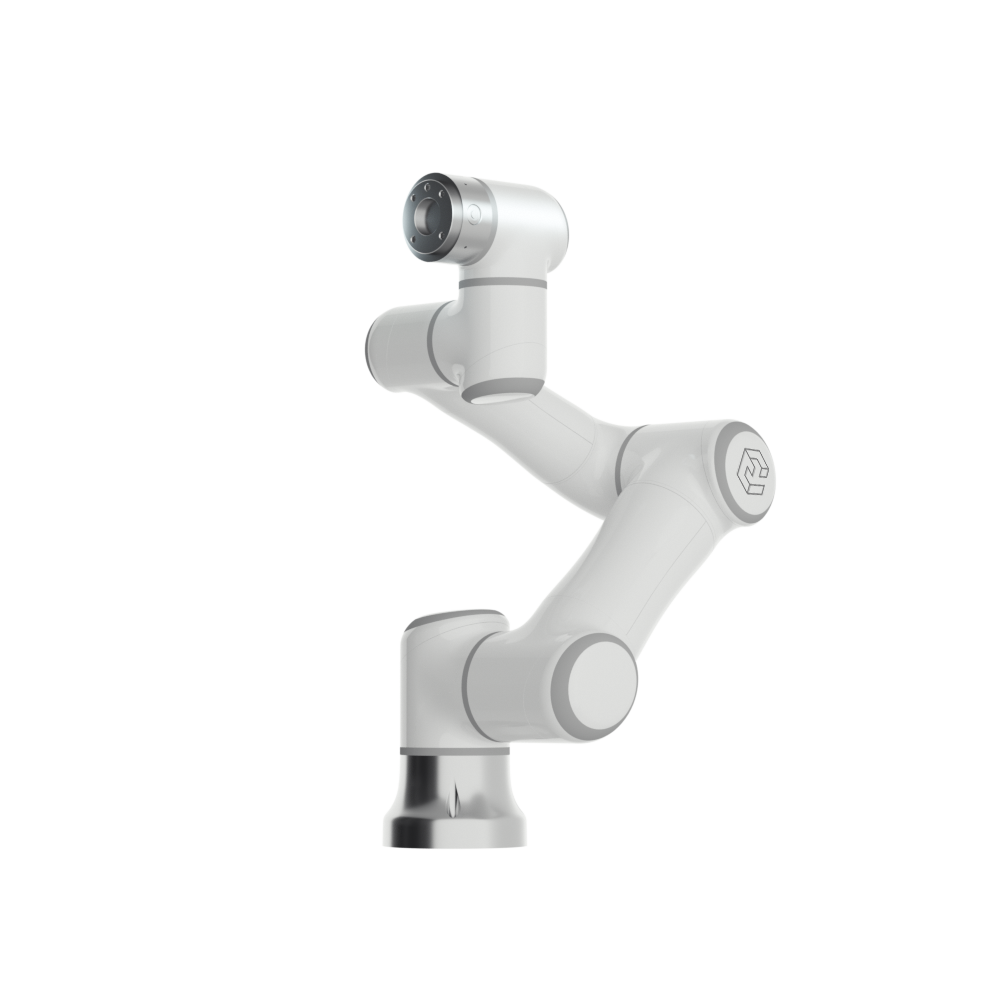

ELITE ROBOTS EC66
ELITE ROBOTS
Specification
​EC66
Controller
Teach Pendant
Robotic Arms
Joints Movement
​Spec Parameter
Payload6kg
Radius914mm
Repeatability±0.03mm
Axis6
IP ratingIP54
Temperature range-10~50℃
Relative humidity5%–95% (non-condensing)
Typical power usage250w
Tool I/O connector12 pin
Tool I/O ports2 DI, 2 DO; 1 AI, 1 AO
Tool I/O power supply24V/2A
Tool I/O communicationRS485, Modbus RTU
FootprintØ 150 mm
  • Weight17.5kg
